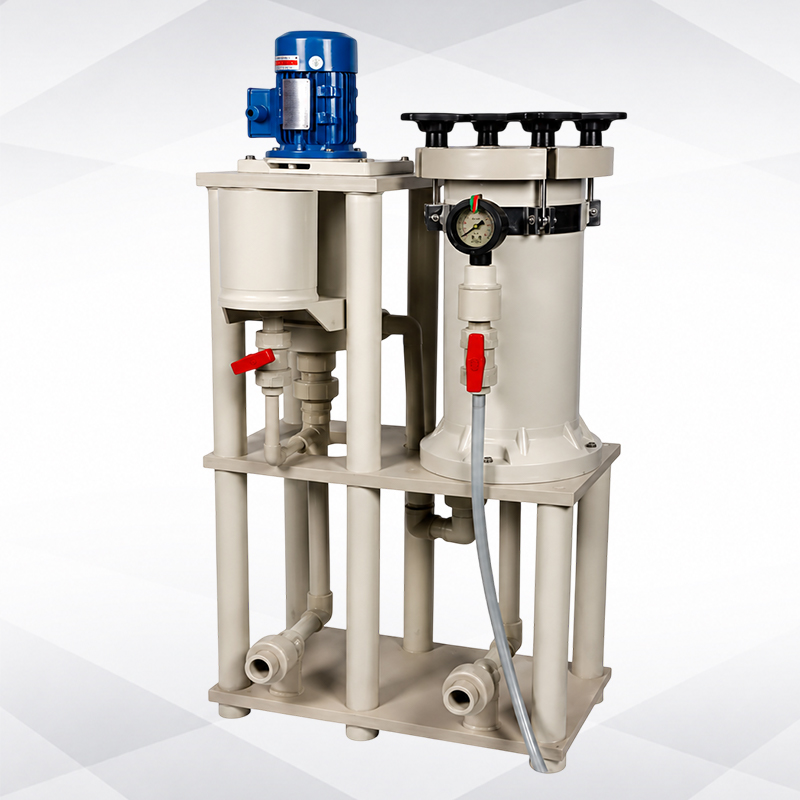

Electro Plating Filter Housing
An Electro Plating Filter Housing is a corrosion-resistant filter housing designed to hold cartridge filters that remove dirt, metal particles, and other contaminants from electroplating solutions. It helps keep the plating bath clean, improves coating quality, extends chemical life, and ensures consistent plating results.
What Is an Electro Plating Filter Housing?
An Electro Plating Filter Housing is a corrosion-resistant filter housing designed to hold one or more filter cartridges for continuous filtration of electroplating chemicals and process liquids. It plays an important role in removing impurities such as suspended solids, metal particles, sludge, and other contaminants that can affect plating quality.
Other standard filter housings, an electro plating filter housing is designed to prevent corrosive chemicals, acidic and alkaline solutions, and demanding industrial environments. Depending on the application, these housings are manufactured using SS 316L, SS 316, SS 304, PP-lined, PTFE-lined, Halar-lined, or other corrosion-resistant materials.
Why Is an Electro Plating Filter Housing Important?
Electroplating solutions continuously accumulate impurities during production. If these pollutants are not removed, they can cause:
- Poor surface finish
- Irregular metal deposition
- Increased chemical consumption
- Product rejection
- Reduced plating bath life
- Frequent maintenance and downtime
Continuous filtration helps maintain electrolyte purity, resulting in better plating quality, improved productivity, and longer equipment life.
Project Gallery
How Does an Electro Plating Filter Housing Work?
An Electro Plating Filter Housing works by passing contaminated process liquid through a replaceable filter cartridge inside the housing, removing suspended particles and impurities.
Working Process:
1.Electroplating solution enters the filter housing.
2.The liquid flows through the cartridge filter media.
3.Suspended particles and contaminants are trapped.
4.Clean filtered solution returns to the plating tank.
5.The filtration cycle continues to maintain bath cleanliness.
This continuous circulation helps improve process stability while reducing waste and chemical replacement costs.
What Are the Key Features of an Electro Plating Filter Housing?
- Corrosion-Resistant Construction : Manufactured using premium-grade stainless steel and chemically resistant lining materials for long service life.
- High Filtration Efficiency : Suitable with micron-rated filter cartridges to remove fine suspended particles.
- Leak-Proof Design : Precision-engineered sealing system minimizes leakage during continuous operation.
- Durable Pressure Vessel : Designed for accurate operation under industrial process pressure.
- Easy Cartridge Replacement : Quick opening mechanism simplifies maintenance and reduces downtime.
- Custom Manufacturing : Available in customized sizes, inlet/outlet configurations, pressure ratings, and cartridge capacities to suit specific process requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Electro Plating Filter Housing |
| Housing Material | SS304, SS304L, SS316, SS316L, PTFE Lined, Halar Lined |
| Filter Type | Cartridge Filter |
| Filtration Rating | As per cartridge selection |
| Surface Finish | Mirror, Matt or Industrial Finish |
| Connection Type | Flanged, Threaded, TC Connection |
| Operating Pressure | Customized |
| Operating Temperature | Application Dependent |
| Installation | Vertical |
| Design Standards | ASME, BS, DIN (where applicable) |
| Customization | Available |
Which Industries Use Electro Plating Filter Housings?
Electro Plating Filter Housings are widely used wherever clean chemical solutions are essential for process consistency.
Common applications include:
- Water Treatment Plants
- Refineries
- Mining Industry
- Pulp & Paper Industry
- Chemical Processing Plants
- Textile Industry
- Power Plants
- Dye & Intermediates Manufacturing
- Oil & Gas Industry
- Edible Oil Processing
- Automobile Manufacturing
- Petrochemical Plants
- Paint & Ink Industry
- Aeronautics Industry
- Cement Plants
- Fertilizer Industry
- Bio-Pharmaceutical Manufacturing
- Ceramic Industry
- Sugar Industry
- Defence & Marine Applications
What Are the Benefits of Using an Electro Plating Filter Housing?
Choosing the right filtration system offers several operational advantages.
- 1. Improved Plating Quality: Removes impurities that may create surface defects, pinholes, rough finishes, or irregular coating thickness.
- 2. Extended Chemical Life: Cleaner plating solutions require less frequent replacement, reducing operating costs.
- 3. Higher Production Efficiency: Continuous filtration minimizes production interruptions and maintains consistent process quality.
- 4. Lower Maintenance Cost: Reduced contamination helps protect pumps, valves, and other process equipment.
- 5. Better Product Consistency: Stable filtration ensures repeatable plating performance across production batches.
- 6. Longer Equipment Life: Corrosion-resistant construction increases service life even in aggressive chemical environments.
A properly selected Electro Plating Filter Housing contributes to cleaner plating solutions, better coating quality, and improved process efficiency.
How Do You Choose the Right Electro Plating Filter Housing?
Selecting the proper filter housing depends on several process parameters.
- Nature of plating chemicals
- Flow rate requirements
- Micron filtration requirement
- Operating pressure
- Operating temperature
- Housing material compatibility
- Number of cartridges required
- Installation space
- Maintenance accessibility
Working with an experienced filtration manufacturer helps ensure the housing is correctly designed for long-term process safety & accuracy.
Why Choose Aris Filtration?
Aris Filtration is a leading manufacturer and exporter of industrial filtration solutions in Ahmedabad, Gujarat, India, serving customers across domestic and international markets.
With expertise in manufacturing Cartridge Filter Housings, Bag Filter Housings, Basket Filter Housings, Inline Filter Housings, Steam Filter Housings, and customized industrial filtration equipment, the company delivers solutions engineered for demanding industrial applications.
What Makes Aris Filtration Different?
- Gujarat-based manufacturer & exporter
- Customized filtration solutions
- High-quality stainless steel fabrication
- Precision-engineered products
- Corrosion-resistant designs
- Industry-standard manufacturing
- Reliable after-sales support
- Solutions for various industries
We offers strong and reliable filtration systems for electroplating, chemical, pharmaceutical, petrochemical, and water treatment applications.
Looking for a reliable Electro Plating Filter Housing? Contact Aris Filtration to discuss your process requirements and receive a customized filtration solution tailored to your application.
Frequently Asked Questions
(1)What is an Electro Plating Filter Housing used for?
It is used to remove suspended particles and contaminants from electroplating solutions, helping maintain bath purity and improve coating quality.
(2)Which materials are used to manufacture Electro Plating Filter Housings?
Depending on the application, they can be manufactured using SS304, SS304L, SS316, SS316L, PTFE-lined, Halar-lined, and other corrosion-resistant materials.
(3)Can the filter housing be customized?
Yes. Size, material, pressure rating, inlet/outlet connection, cartridge quantity, and design can be customized according to process requirements.
(4)Which filter cartridges are compatible?
Electro Plating Filter Housings are compatible with various micron-rated cartridge filters selected according to the filtration requirement.
(5)Which industries use Electro Plating Filter Housings?
They are commonly used in electroplating plants, chemical industries, water treatment, refineries, mining, pharmaceuticals, textiles, petrochemicals, paints, inks, automotive manufacturing, and many other industrial sectors.
